Model Number PIN+ Mini-C R3.1
Certification
Form-factor USB-C
Functions PIN+ FIDO2.1
WebAuthN+CTAP
OpenPGP
AAGUID eabb46cc-e241-80bf-ae9e-96fa6d2975cf
Dimensions 24×15×6 mm
Weight 10 gr
Programmable
Product ID T2-109
Azure Passwordless fully compatible
Google Account fully compatible
ISDecisions UserLock 11.0 or newer fully compatible
Stripe Account fully compatible
Facebook Account fully compatible
GitHub Account fully compatible
🇨🇭 AGOV- Authentication of Swiss Authorities fully compatible

Not listed here

Write us

If the system you are using is not included in the compatibility list, it does not necessarily indicate incompatibility. We encourage you to refer to our integration guides page or get in touch with us for more information.


data sheet


FIDO Key Usage
FIDO security keys with USB ports (except the mini models) are not designed to be kept plugged in while storing your main device, such as a laptop or smartphone, away. For optimal security and longevity, unplug the key when not in use. Please note that no warranty is provided for defects or damage caused by improper usage, such as leaving the key plugged in while storing the device.

PIN+ Firmware
This security key runs our PIN+ firmware and is the most secure FIDO2 security key on the market. It is open-source and has undergone a public third-party security audit.

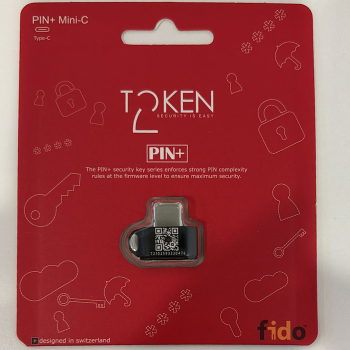

PIN+ Mini-C Release3.1 FIDO2, U2F and TOTP Security Key with PIN complexity

  shipping costs will be calculated at the checkout page

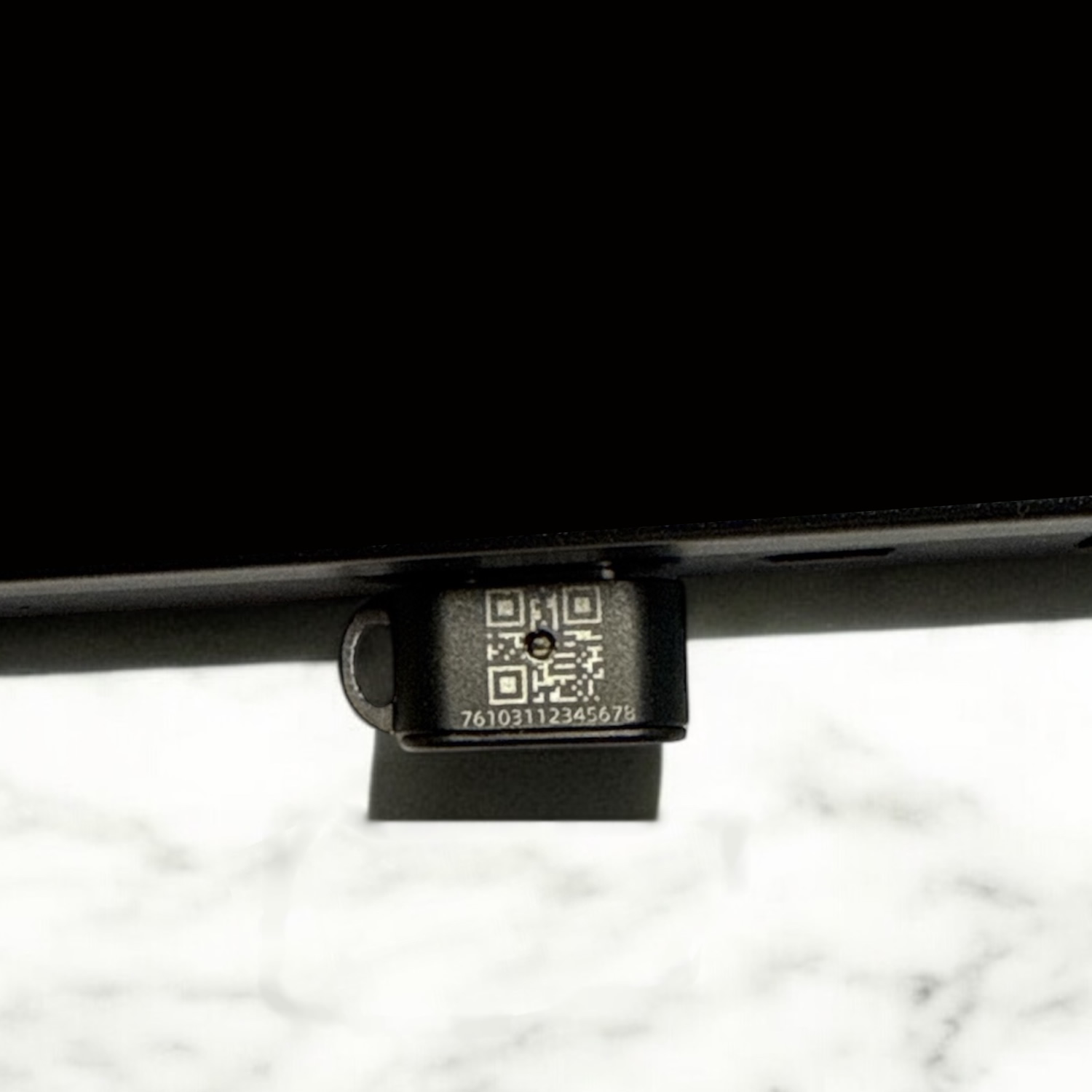

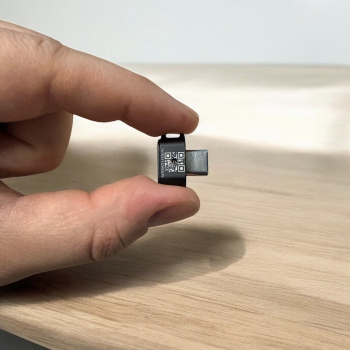

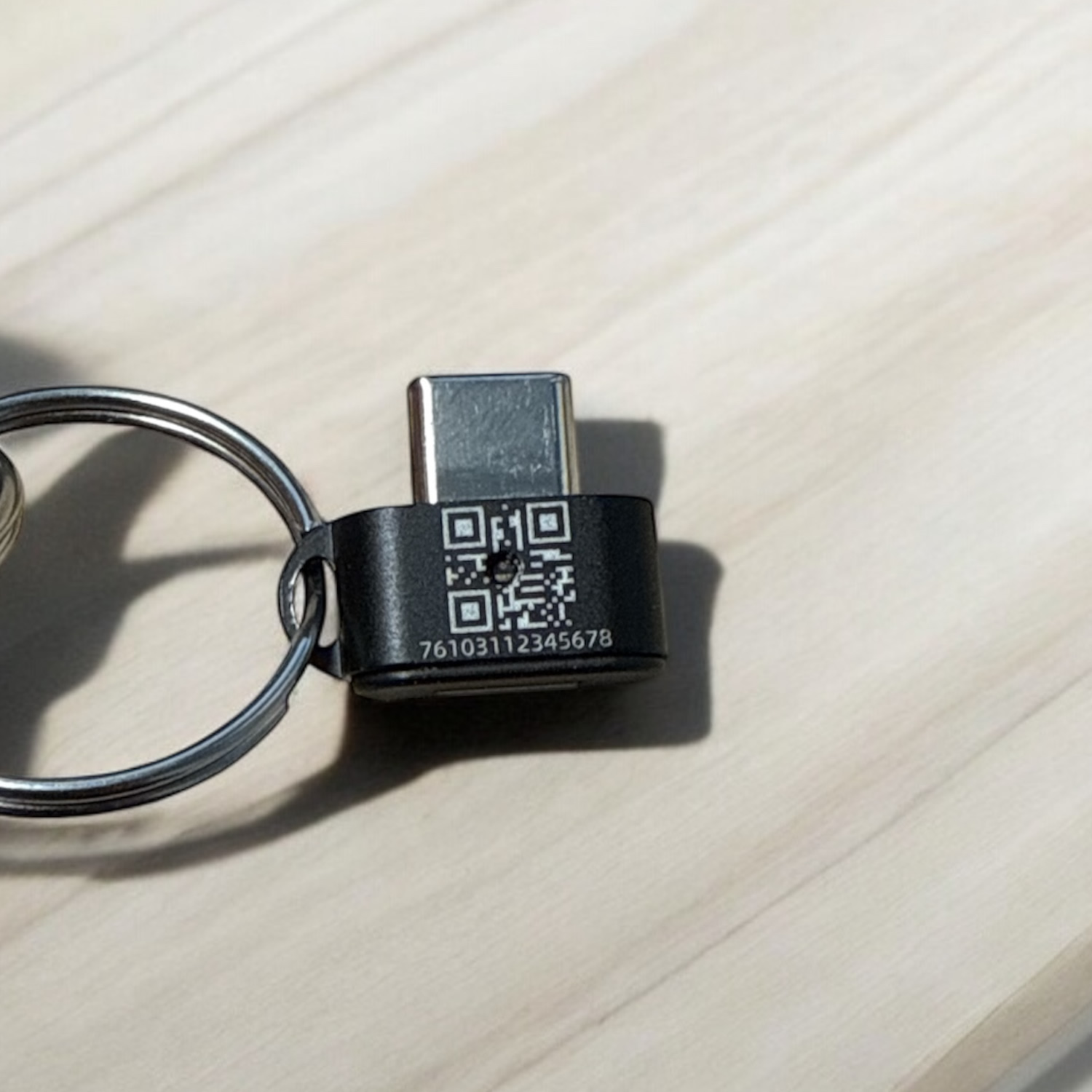

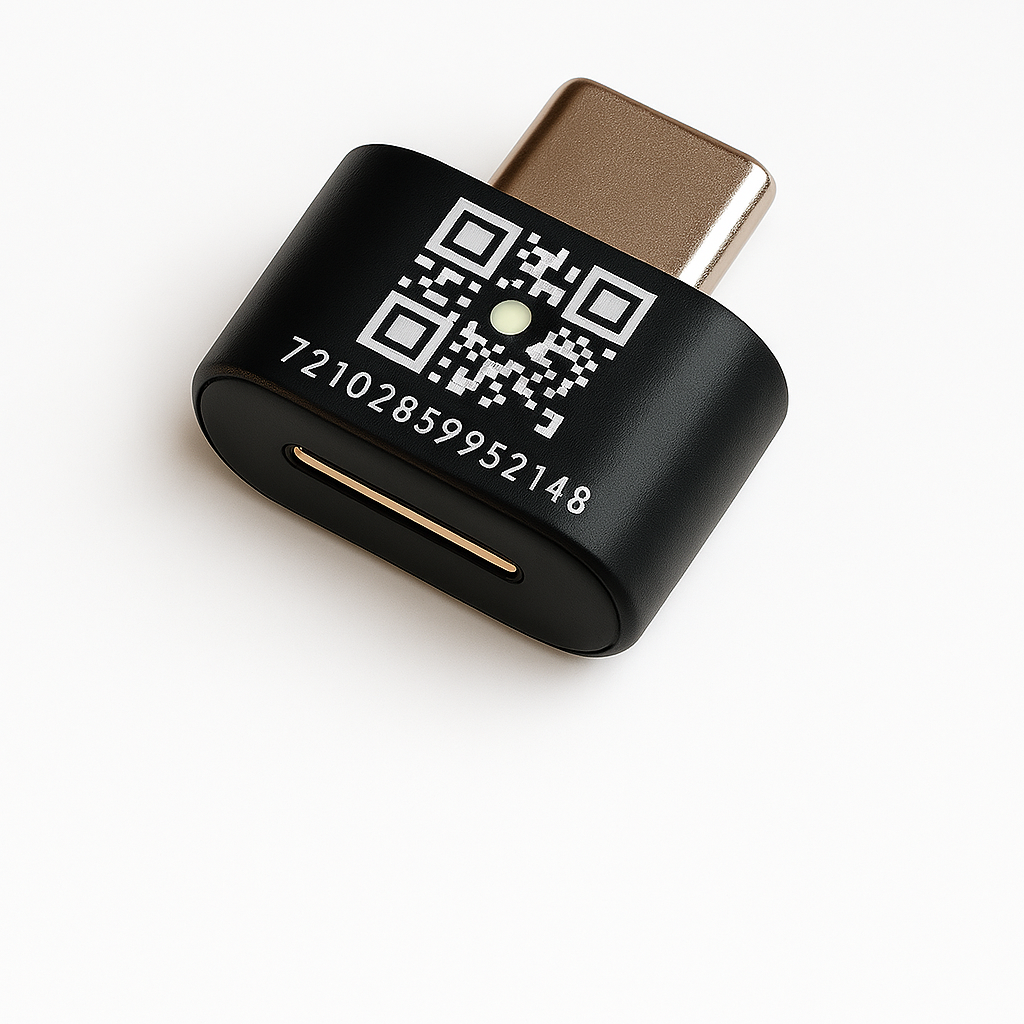

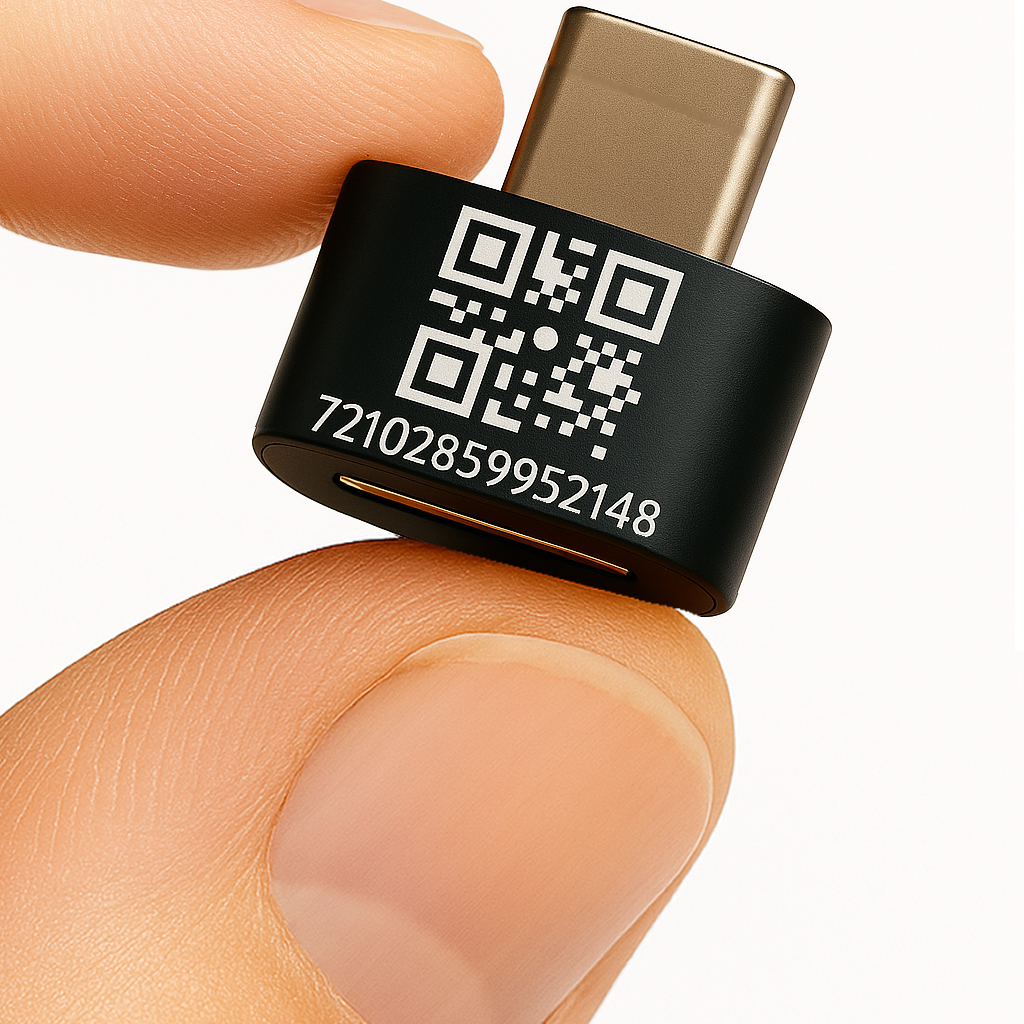

The PIN+ MiniC is a miniature FIDO2 Security key with a USB Type-C port, featuring advanced PIN complexity at the firmware The device is small enough to be constantly plugged in, however it can be carried as well due to a keyring hole on the casing. This device runs Release 3.1 of our firmware.


What's New in Release3.1
  • OpenPGP Applet: Release3.1 introduces an OpenPGP applet, adding compatibility with OpenPGP software for secure digital signing, encryption, and authentication. Different from Release3, the OpenPGP applet in Release3.1 firmware features RSA4096, ed25519, x25519 algorithms and the UIF functionality

FIDO Security Keys

FIDO security keys are small USB dongles that enable secure login to websites and applications supporting FIDO2 WebAuthn and classic FIDO (U2F) standards. With Release3 of our PIN+ Series, you can now store up to 300 passkeys (also known as resident keys or discoverable credentials) on a single device.

The PIN+ MiniC combines hardware-based authentication, public-key cryptography, TOTP/HOTP, U2F, and FIDO2 protocols to protect your accounts. This device provides the highest level of multifactor authentication for user accounts with platforms such as Twitter, Facebook, Gmail, GitHub, Dropbox, Dashlane, Salesforce, Duo, Centrify, and hundreds more HOTP, U2F, and FIDO2 compatible services. No additional tools or applications are required; simply insert the Security Key into a USB-TypeC slot and authenticate with a simple touch. The security key does not require a battery nor network connectivity – it is always on and accessible.

Specifications
Model Number PIN+ MiniC
Button Capacitive interface button
Functions FIDO U2F + FIDO2.1 WebAuthn + HOTP (HID) + TOTP (with a companion app)
OpenPGP RSA2048, RSA4096
secp256r1, secp256k1, secp384r1, secp521r1
ed25519, x25519
User Interaction Flags (UIF)
Embedded Security Algorithm ECDSA, SHA256, AES, HMAC, ECDH
SSH with FIDO Support ecdsa-sk & ed25519-sk
Interface Type NFC, USB Type-C
Firmware FIDO 2.1 Token2
PIN complexity enforcement
Maximum FIDO2.1 Resident Keys 300
Maximum OTP Profiles 50 TOTP/HOTP via the app + 1 HOTP via HID
Lifetime At least 10 years
Programming Cycles 100,000 times
Communication Protocol CTAP2.1, HID
Working Voltage 5.0V DC
Input Currency 35mA
Power 0.18W
Working Temperature -10℃ - 50℃
Dimensions 24 mm x 15 mm x 6 mm
Storage Temperature -20℃ - 70℃

Enhanced Water Resistance

This model features a specialized PCB (Printed Circuit Board) coating for enhanced water resistance, ensuring durability against water ingress and safeguarding your data in any environment.


TOTP Feature

This security key can securely store the secrets for your TOTP profiles but requires a companion app (available for Android, iPhone, Windows, and cross-platform via a Python tool for Linux, macOS, and similar systems) to generate OTPs.
