Buy options
22.53 CHFModel Number | T2F2-PIN+/TypeC Release3 |
---|---|
Form-factor | Plastic case USB-C,NFC |
Functions | PIN+ FIDO2.1 WebAuthN+CTAP OpenPGP |
Dimensions | 42×17×6 mm |
Weight | 5 gr |
Programmable | |
Storage |
passkeys: 300 HOTP: 1 TOTP: 50 |
Product ID | T2-102 |
Azure Passwordless | fully compatible | |
---|---|---|
Google Account | fully compatible | |
ISDecisions UserLock 11.0 or newer | fully compatible | |
Stripe Account | fully compatible | |
Facebook Account | fully compatible | |
GitHub Account | fully compatible | |
🇨🇭 AGOV- Authentication of Swiss Authorities | fully compatible | |
Not listed here |
Write us |
|
If the system you are using is not included in the compatibility list, it does not necessarily indicate incompatibility. We encourage you to refer to our integration guides page or get in touch with us for more information. |
For detailed information on how FIDO2 authentication is supported across different operating systems and browsers, including specific considerations and limitations, please visit our comprehensive guide
Please check product and platform compatibility before placing an order
All pictures shown are for illustration purpose only. Actual product may slightly vary due to product enhancement or other reasons.
FIDO Key Usage
FIDO security keys with USB ports (except the mini models) are not designed to be kept plugged in while storing your main device, such as a laptop or smartphone, away. For optimal security and longevity, unplug the key when not in use. Please note that no warranty is provided for defects or damage caused by improper usage, such as leaving the key plugged in while storing the device.PIN+ Firmware
This security key runs our PIN+ firmware and is the most secure FIDO2 security key on the market. It is open-source and has undergone a public third-party security audit.Keyring Notice
To ensure proper use, please adhere to the following guidelines:
- Use keyrings ≤ 3 mm thick or a lanyard.
- With proper rings, the USB key tolerates 80–100 N (Newtons) of force.
- For higher forces, consider using a protective case.

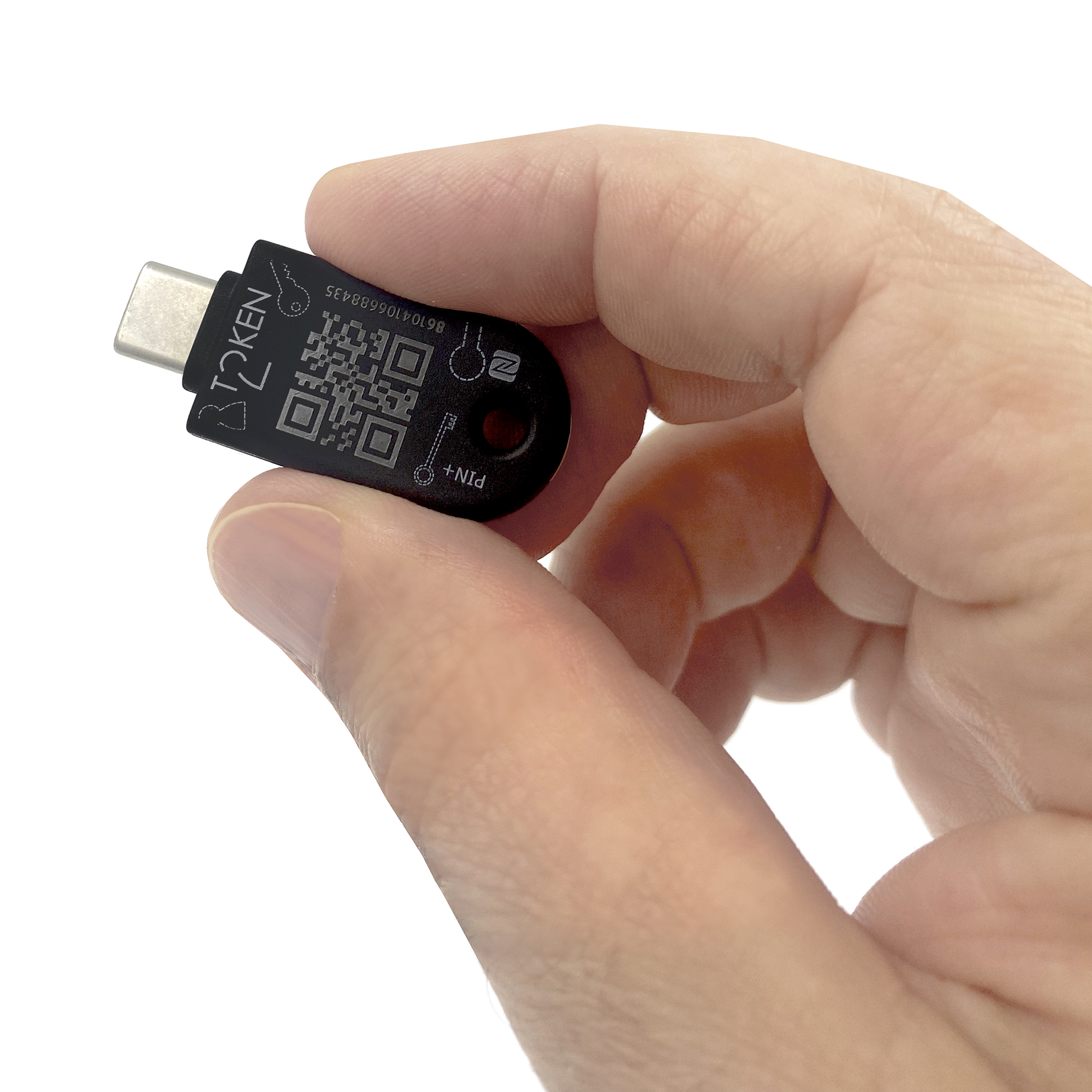

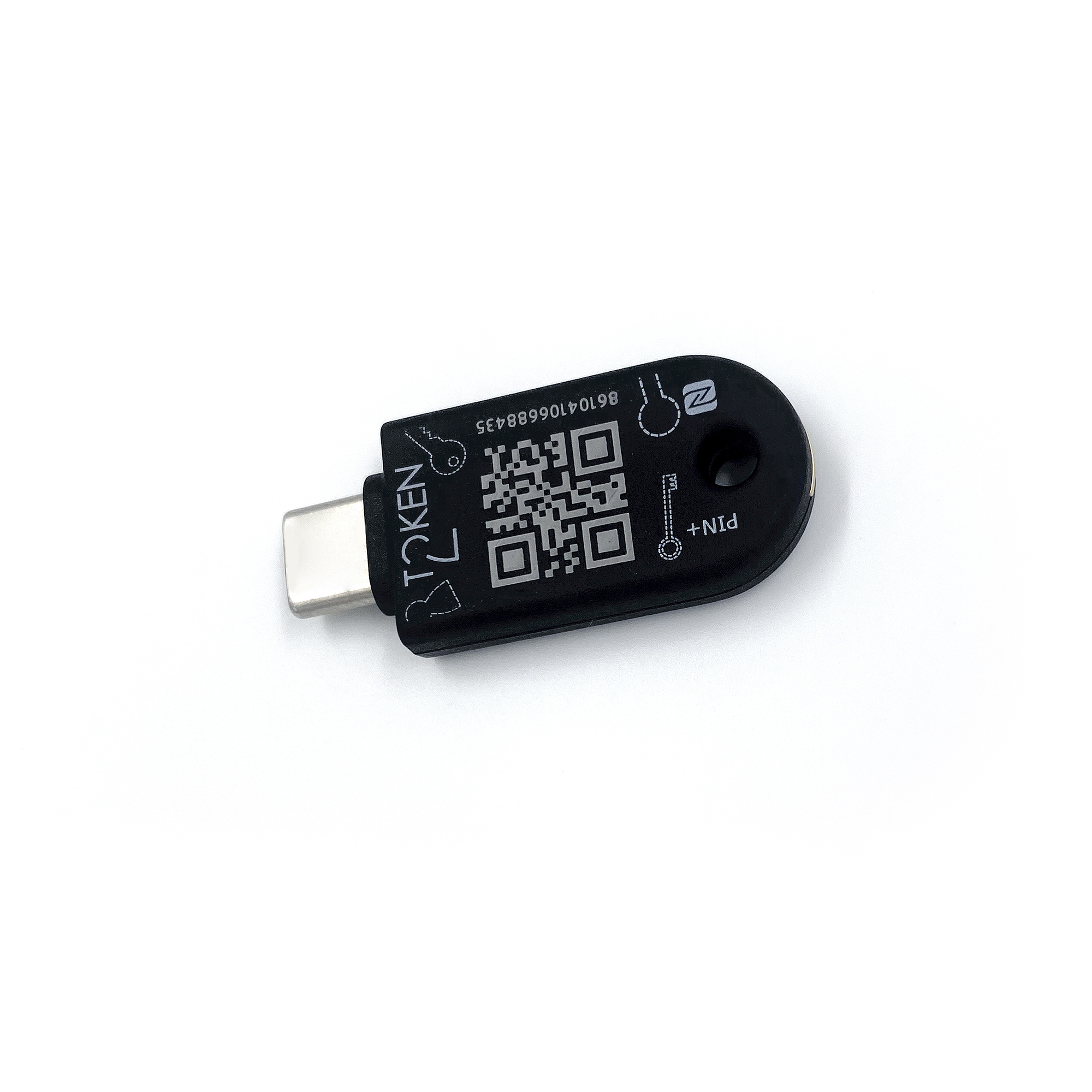

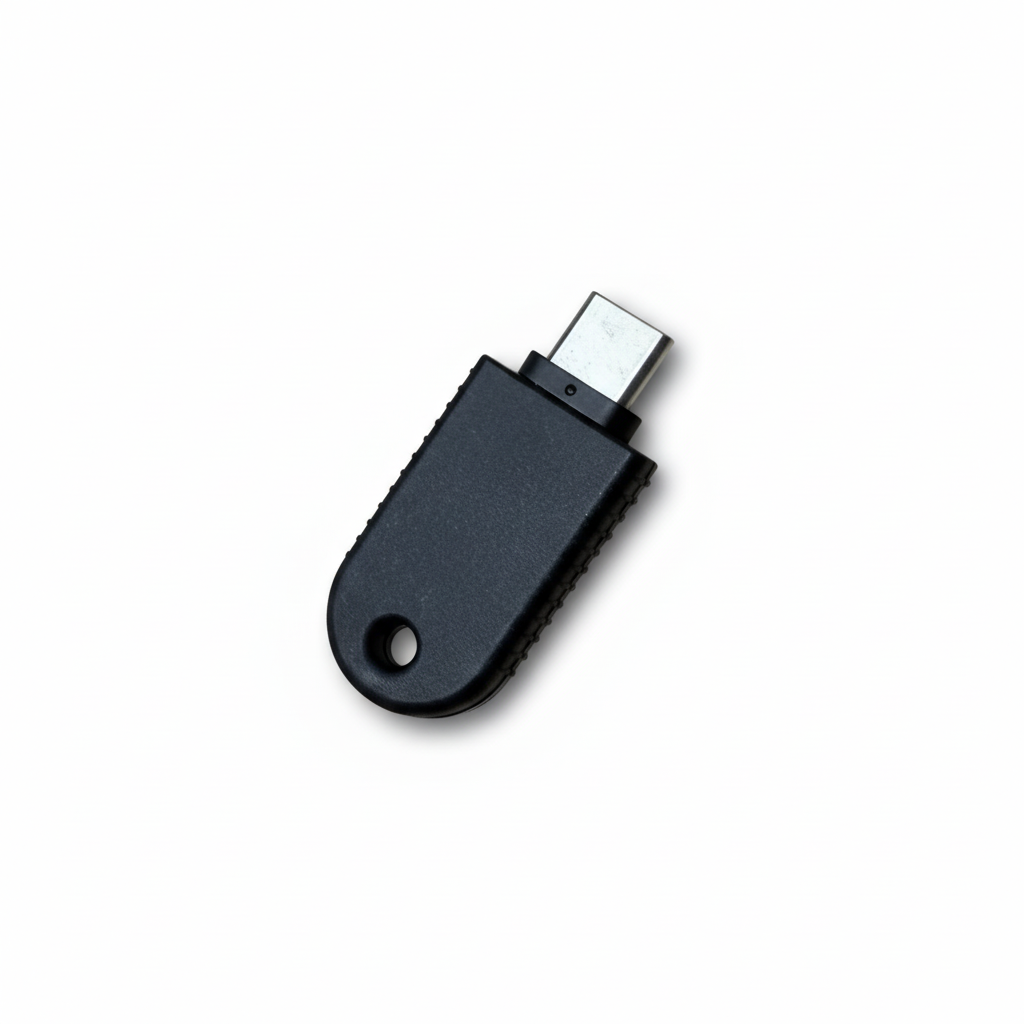

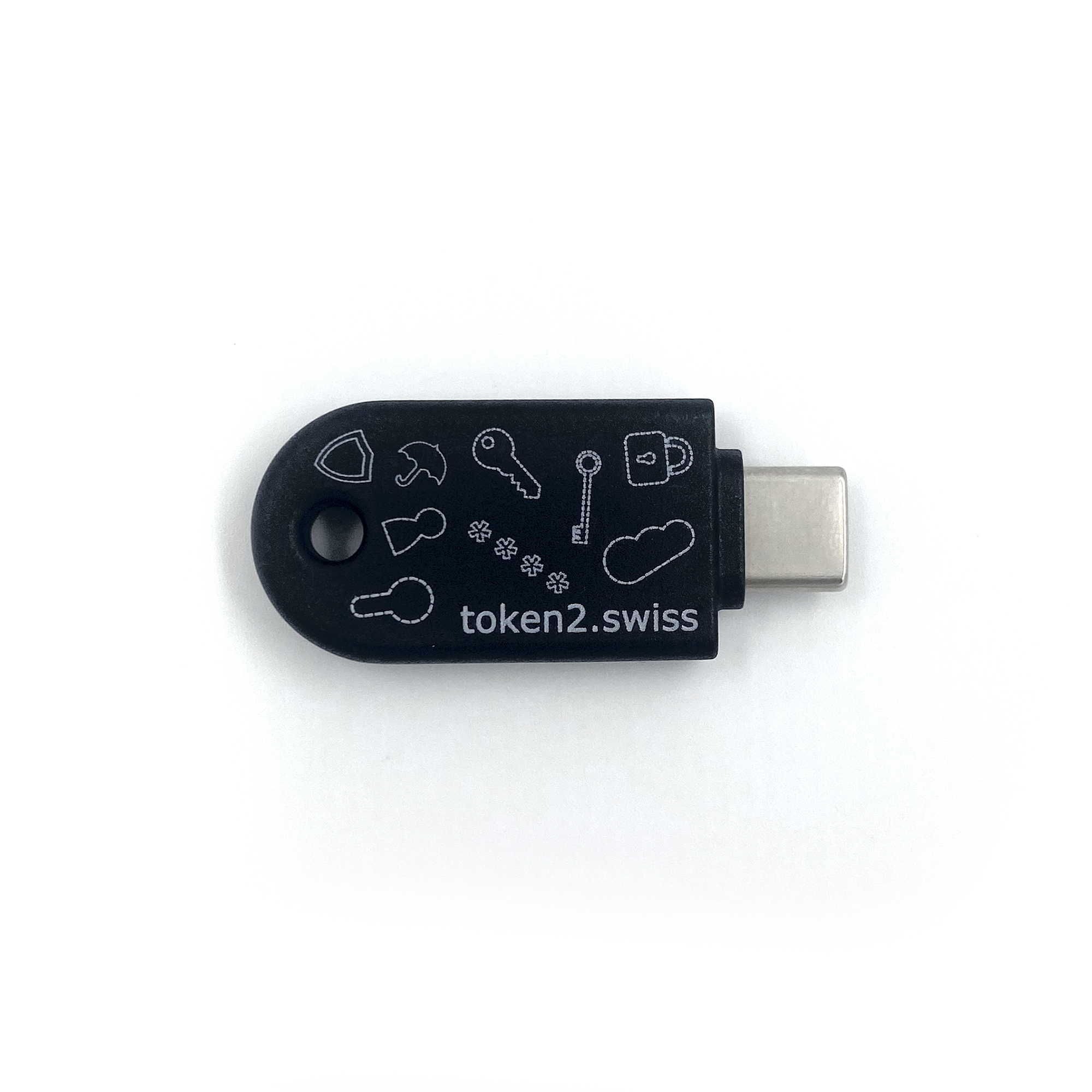

The T2F2-PIN+ Release3 TypeC is an NFC-enabled FIDO2 Security key with a USB Type-C port, featuring advanced PIN complexity at the firmware level. With an NFC chip onboard, this FIDO2 key can be used natively on modern iPhones (starting from iOS 13.3) and on Android devices with NFC support. This model includes a capacitive sensor-type integrated touch-button and is only 6 mm thick.
What's New in Release3
- OpenPGP Applet: Release3 introduces an OpenPGP applet, adding compatibility with OpenPGP software for secure digital signing, encryption, and authentication.
- iOS Management via USB-C: For the first time, users can manage passkeys and set PINs on iOS via USB-C, enabling full management on devices like modern iPads that lack NFC functionality. Previous versions and all competitor keys allow only authentication over USB under iOS, but not key management.
FIDO Security Keys
FIDO security keys are small USB dongles that enable secure login to websites and applications supporting FIDO2 WebAuthn and classic FIDO (U2F) standards. With Release3 of our PIN+ Series, you can now store up to 300 passkeys (also known as resident keys or discoverable credentials) on a single device.
The T2F2-PIN+ Release3 TypeC combines hardware-based authentication, public-key cryptography, TOTP/HOTP, U2F, and FIDO2 protocols to protect your accounts. This device provides the highest level of multifactor authentication for user accounts with platforms such as Twitter, Facebook, Gmail, GitHub, Dropbox, Dashlane, Salesforce, Duo, Centrify, and hundreds more HOTP, U2F, and FIDO2 compatible services. No additional tools or applications are required; simply insert the Security Key into a USB-TypeC slot and authenticate with a simple touch. The security key does not require a battery nor network connectivity – it is always on and accessible.
Specifications
Model Number | Token2 T2F2-PIN+ Release3 TypeC |
Button | Capacitive interface button |
Functions | FIDO U2F + FIDO2.1 WebAuthn + HOTP (HID) + TOTP (with a companion app) |
OpenPGP | RSA2048 ECC: secp256r1, secp256k1, secp384r1, secp521r1 User Interaction Flags (UIF): not supported Curve25519: not supported |
Embedded Security Algorithm | ECDSA, SHA256, AES, HMAC, ECDH |
SSH with FIDO Support | ecdsa-sk & ed25519-sk |
Interface Type | NFC, USB Type-C |
Firmware | FIDO 2.1 Token2 PIN complexity enforcement |
Maximum FIDO2.1 Resident Keys | 300 |
Maximum OTP Profiles | 50 TOTP/HOTP via the app + 1 HOTP via HID |
Lifetime | At least 10 years |
Programming Cycles | 100,000 times |
Communication Protocol | CTAP2, HID, NFC |
Working Voltage | 5.0V DC |
Input Currency | 35mA |
Power | 0.18W |
Working Temperature | -10℃ - 50℃ |
Dimensions | 42.1 mm x 17 mm x 6 mm |
Storage Temperature | -20℃ - 70℃ |
Enhanced Water Resistance
This model features a specialized PCB (Printed Circuit Board) coating for enhanced water resistance, ensuring durability against water ingress and safeguarding your data in any environment.
TOTP Feature
The T2F2-PIN+/TypeC Security key can securely store the secrets for your TOTP profiles but requires a companion app (available for Android, iPhone, Windows, and cross-platform via a Python tool for Linux, macOS, and similar systems) to generate OTPs.
iOS Support
Native support of NFC FIDO2 Keys in iPhone Safari
Integration Guides
Using Your T2F2 Security Key with Google
Passwordless authentication in Azure AD with Token2 FIDO2 keys
FIDO U2F security key for Stripe
Using FIDO2 USB keys under Linux
Operating Systems and Browsers Support
For detailed information on how FIDO2 authentication is supported across different operating systems and browsers, including specific considerations and limitations, please visit our comprehensive guide
Related products

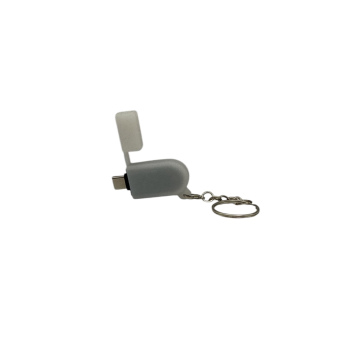

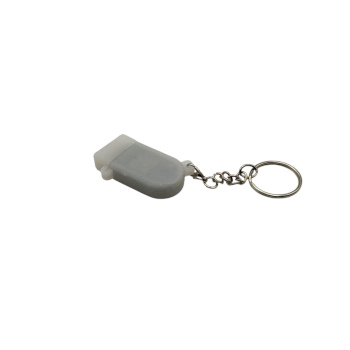

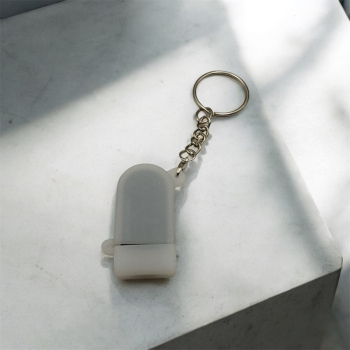

Token2 Silicone Case for Plastic USB-TypeC FIDO2 Keys
